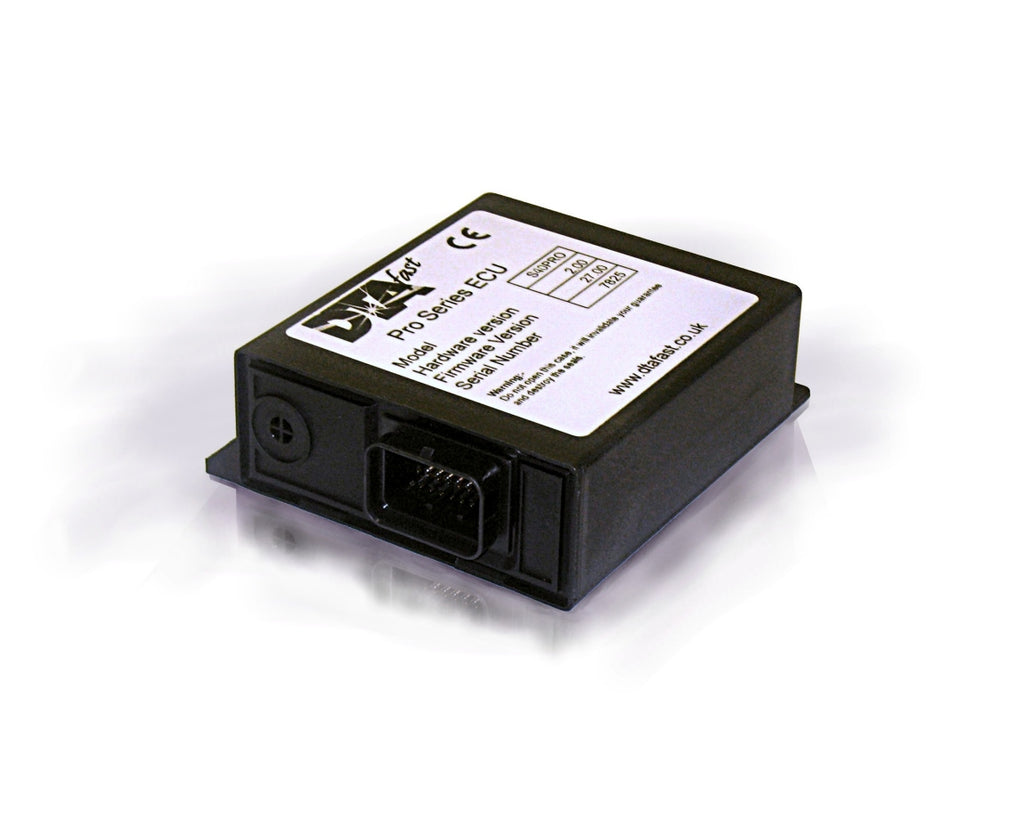

DTA S40 Pro ECU *Ignition Only*

  • Sale
  • Regular price £420.00


Maintaining the highest manufacturing quality and reliability of more sophisticated ECU’s in the S series range it provides a lower priced solution for a wide range of applications.

The primary aim of the S40 is to provide an economic ECU for relatively simple wasted spark four cylinder engines using semi-sequential injection.

Advanced features and system flexibility, however, are in no way sacrificed to this aim.

ECU Functions


Engine Configuration

20,000 rpm capability
Flexible and easily adapted to different OEM, crank, cam sensor arrangements.
Genuine four and two stroke support.
wasted spark or distributor.
User controlled fan activation.
Sensors can be calibrated individually with a lot of preset options supplied.
Flexible Tacho Output
soft and hard rev limits


Main Ignition Functions

Air, coolant and manifold pressure compensation maps.
RPM and load breakpoints can be calibrated by the user.
Throttle or MAP as load.
All maps with one or two dimensional with interpolation as required.




Turbo Control Functions

Open or closed loop turbo pressure control via PWM valve.
Modify target turbo pressure by gear selected.
Modify target turbo pressure by vehicle speed.
Active base PWM map for easy calibration.


Idle Control Functions

Open or closed loop idle speed control via PWM valve.
Closed loop idle target speed temperature dependant.
Active base PWM map for easy calibration.

Flexible Input/Output

Three uncommitted input tables which use 0 5 volt inputs or any input the S60 knows already, linked to fuel and advance modifiers and a PWM output.


Launch Control

Fully flexible first gear launch capability.
Extensively tunable to individual vehicles.


Full Throttle Gear Shift Cut

Shift cut capability with 1ms resolution, variable for each gear with
full switch de-bounce capability.


Voltage Compensation Tables

User configurable voltage compensation tables for injector dead time
and coil on time (dwell time).


Diagnostics and Test Features.

Full sensor diagnostics and fault recording.
Extensive engine run time recording at different load and speed conditions.
Ability to exercise injectors and coils without engine running for fault finding.


Other Features

Sealed Latching Connectors

Size 115 x 100 x 41 mm

Weight 268 gm

All outputs protected against over temperature and over current

Inputs protected against severe wiring mistakes and accidents

Reverse battery protection

Alternator load dump protection


Input and Output Features

Inputs

Crank Shaft (Magnetic Only)

Throttle Position

Coolant Temperature

Air Temperature

Manifold / Barometric Pressure

Oil Pressure

Fuel Pressure

Oil Temperature

Battery Volts

3 x User Defined Analogue (Shared Use)

Launch Switch

Shift Cut

Undriven Wheel Speed



Outputs

2 x Coil Drivers

Tacho

Fan/Aux 2/Turbo Pressure Valve (Shared Use)

Idle Valve (Shared Second Injector Driver)

Shift Light
