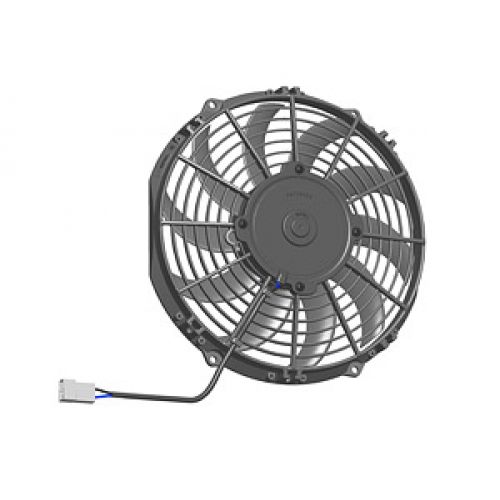

VA11-AP7/C-57A
|
255
|
|
Product features
|
Performance chart
| Static pressure | Airflow | Current input | Airflow | Static pressure |
| mm H20 | m³/h | A | CFM | in H2O |
| 0,0 | 1360,0 | 8,7 | 802,0 | 0,0 |
| 2,5 | 1250,0 | 8,9 | 738,0 | 0,1 |
| 5,0 | 1150,0 | 9,1 | 679,0 | 0,2 |
| 7,5 | 1020,0 | 9,2 | 602,0 | 0,3 |
| 10,0 | 780,0 | 8,9 | 460,0 | 0,4 |
| 12,5 | 480,0 | 8,7 | 283,0 | 0,5 |
| 15,0 | 380,0 | 8,7 | 224,0 | 0,6 |
| 17,5 | 280,0 | 9,0 | 165,0 | 0,7 |
| 20,0 | 120,0 | 8,7 | 71,0 | 0,8 |
| 25,0 | 0,0 | 9,0 | 0,0 | 1,0 |
| Test voltage 13 V d.c. | ||||
