One gauge that does it all - now with AFR Bundle - the ultimate AFR gauge setup.
PLX patented MultiGauges can view multiple sensors and styles. Choose a single gauge solution or a cluster gauge solution that to meet your specific display needs.

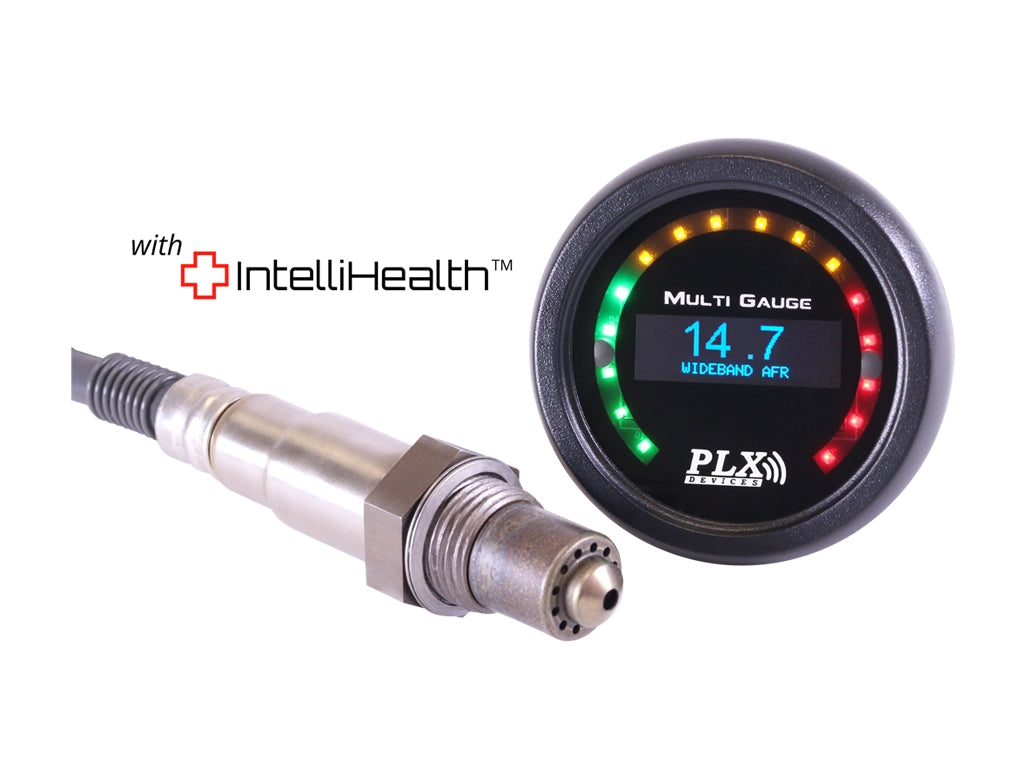

The DM-6 Multi Gauge Display Module is an OLED automotive gauge designed to display the measured values from your PLX Sensor Modules. Measuring only 0.7" (18 mm) thin, it can be mounted virtually anywhere. The DM-6 Multi Gauge is designed to fit into most aftermarket 2 1/16" (52 mm) cups, and can be mounted for seamless integration into your vehicle. Utilizing new touch screen sense technology, buttons are a thing of the past. Navigate your gauge and menus with ease by touching the bezel of the gauge. An ideal accessory for your PLX Sensor Modules. Connect to a Multi Gauge with OBD II for even more information than any standard gauge.
Features:
Plug and Play
US and Metric Units
Automatic Sensor Detection
180 deg viewing angle
Excellent daytime visibility
3 position multi touch interface
AFR Features:
New Sensor: Improved reliability, reaction time, warm up time, and reduced power consumption New Parameters: O2 Sensor Health, O2 Sensor Reaction Time, Voltage New Bosch LSU 4.9 Sensor Plug and play controller and gauge combo No Calibration Required Soft start technology 2 analog outputs 1 digital input, 1 digital output Compatible with multiple fuels Accurate to 0.1 AFR resolution (gasoline)
Included Items:
SM-AFR main unit
Bosch LSU 4.9 wideband sensor
O2 sensor harness
10ft 4ft power wire with 2.1mm connector
4ft Analog wires and connector with 4 terminals
1ft Serial Cable Termination jumper
User Manual
DM-6 2 1/16" (52 mm) Gauge
4 Pin connector for SM-AFR connectivity
2 Terminals for 4 pin Connector
*O2 Bung and Cap Sold Separately
**This product is manufactured to order and is not eligible for cancellation or return**
