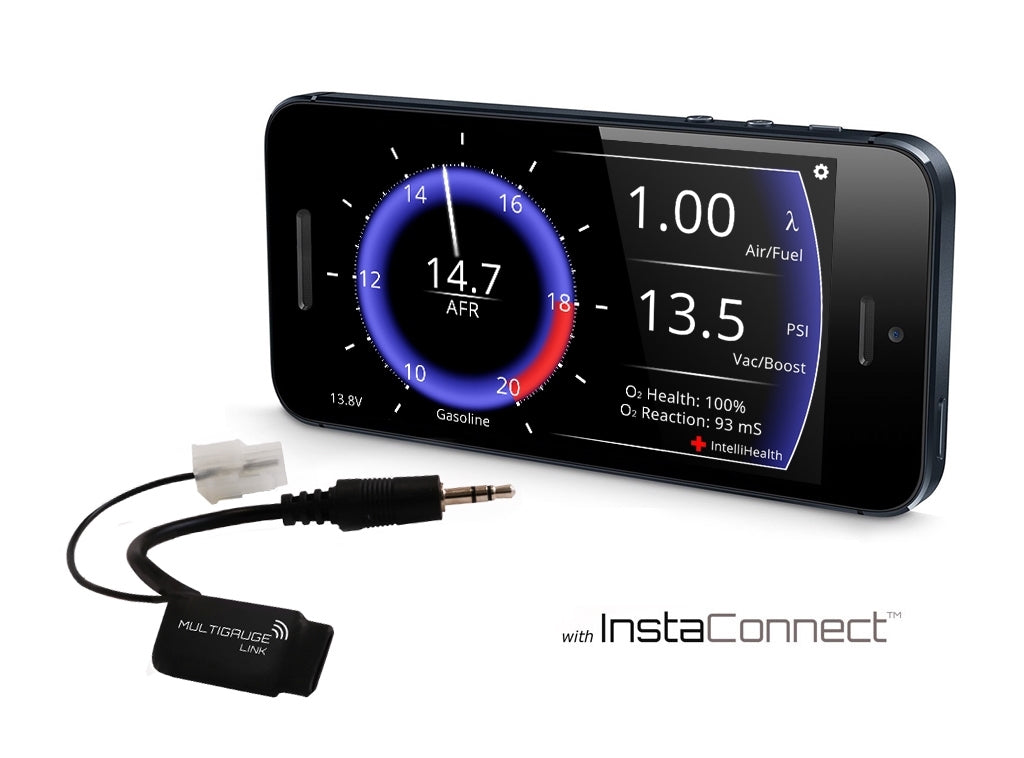

Aftermarket gauges without the clutter. MultiGauge Link connects with PLX sensor modules and wirelessly sends sensor data to your Apple / Android smart device for a gauge cluster free solution. Simply download the app, and launch MultiGaige Link. The app automatically connects and detects your sensors in the daisy chain and displays them on your smart device.
- Smartphone connection - Compatible with Apple and Android
- Fast and accurate - a fully digital connection and Bluetooth 4.2 technology for precise measurements.
- Fully plug and play - simply install your sensor modules, connect MultiGauge Link, launch the free app.

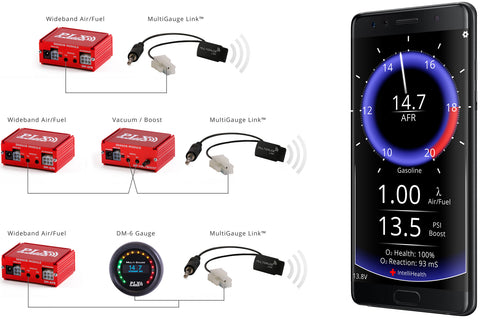

- Currently compatible with Sensor Modules: SM-AFR and SM-Vac/Boost Only
Tech Specs for MultiGauge Link:
Voltage: 3.3V
Power Consumption: 0.1 Watts
Wireless: Bluetooth 4.1
Serial Interface: 19200 Baud 8N1
Range: ~50ft line of sight
Operating Temperature: 0 - 80 Deg C
Firmware Updatable: Yes, OTA (Over the Air)
Module dimensions: 0.2" x 0.6" x 1.2" (3mm x 15mm x 30mm)
Cable length: 2.5"
**This product is manufactured to order and is not eligible for cancellation or return**
